When my O-290-D2 was on the engine stand last month, a large puddle of engine oil gradually appeared underneath. The front crankshaft oil seal had to be the source of the leak so I resolved to have it replaced before my first flight. I've been bugging the local A&E to R-and-R the seal, but he's been too busy or something. So today I removed the old seal myself with a hook and ordered a replacement seal and some Pliobond 20 at Aircraft Spruce. Here are a couple photos of what I found in there. Now keep in mind that this engine was built up by Don George of Orlando, FL in 1991, and only has 4 hours on the Hobbs:

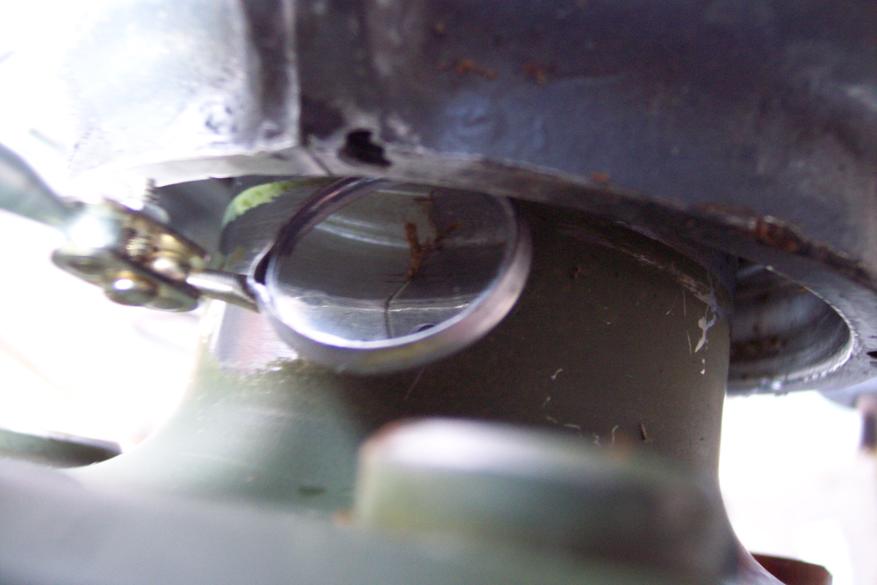

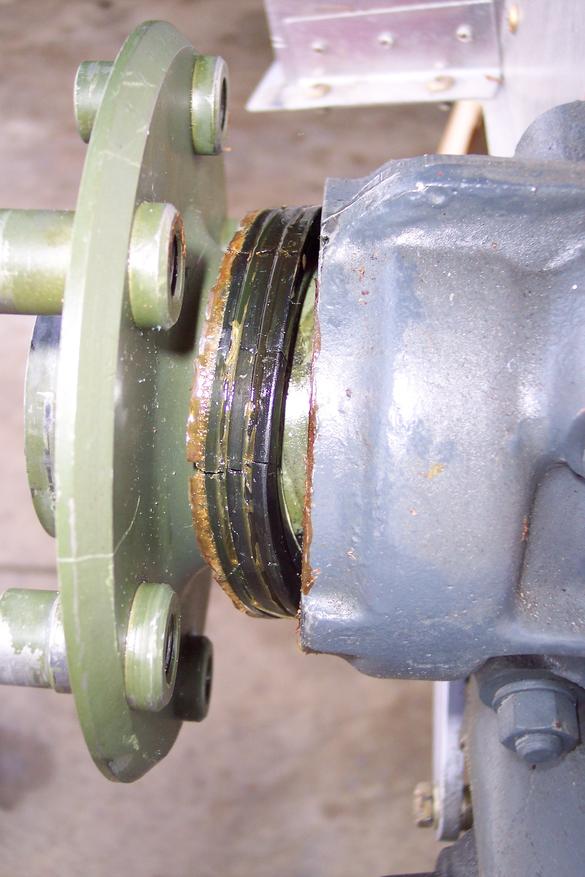

Look at all the cracks in the seal! It's no wonder that oil was leaking out! Furthermore, when I started cleaning out (with M.E.K.) the recess where the seal went, I noticed that there were several pieces of silk thread intruding into the seal area at the case part line (another mirror shot). I cut the silk thread off with a sideways razor blade on a stick:



I'm just posting this for information, but all comments are welcome, as always.

I plan to use the EAA method as well as Lycoming Service Instruction 1324 to reinstall the new seal. Wish me luck.
