Doug,
I installed a channel with about a 3.5" x 1.0" cross section across the

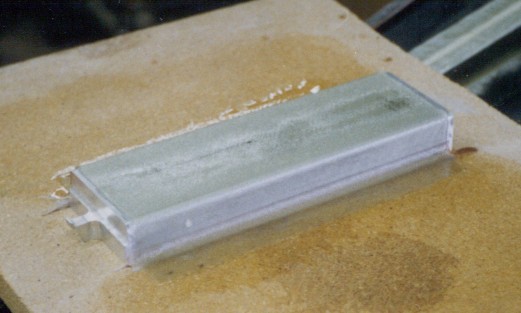

bottom of the aileron bellcrank area. The channel was created by doing a

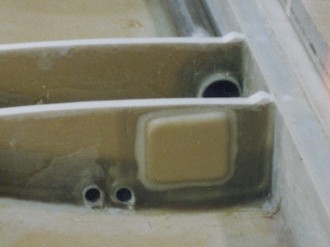

lay up over a piece of scrap aluminum. For venting air I have two
tubes of about .500" diameter across the top of the bell crank bay. The
bell crank nut plates were covered with a piece of foam and then

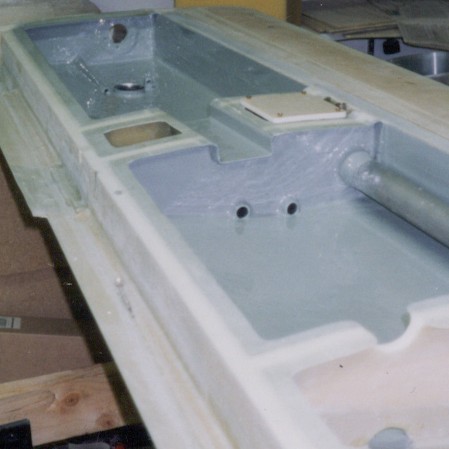

glassed. The pictures show some of the details.
Chris Zavatson
N91CZ
360std
|
|
