" Does anyone have an EDM-930 that they could get me some information on?  I  would appreciate and photo of the unit?"

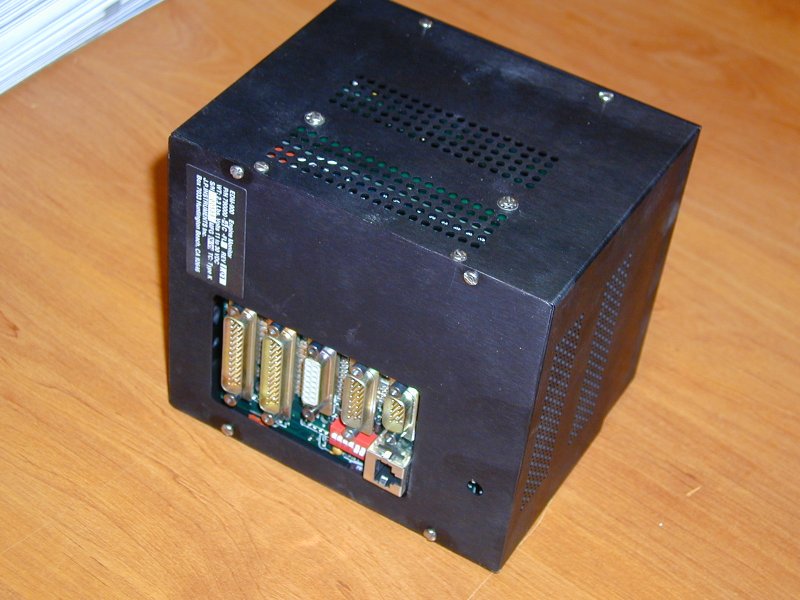

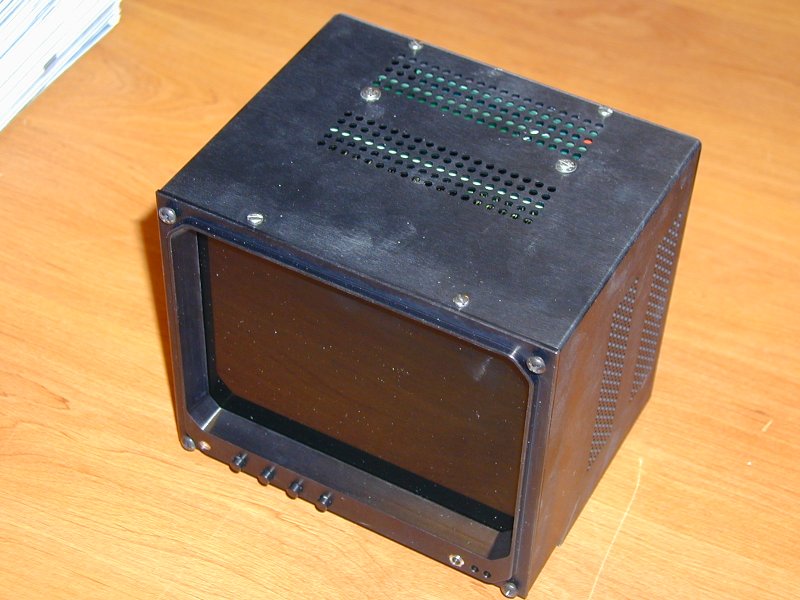

I have attached a few photos of my EDM-930 below. I went through the documentation yesterday, but couldn´t find a panel cut-out template, so I have taken some measurements:

All measurements are in inches (not in knots, gallons or psi!)

Total width:  5.977
Total height: 5.362

Cut out width:  5.532
Cut out height: 4.736

Note that the cut out corners are not simply square, but are 2 x 45 deg. cuts. The 45 deg. bits are some 0.413 long and the end radius is approx 0.3.

Screw hole distances are (ctr. to ctr.) 5.498 and 4.700 equally spaced from the panel cut-out!

There is no need for seperate holes for the pushbuttons, as you can see.

Regards
Tim Jorgensen
