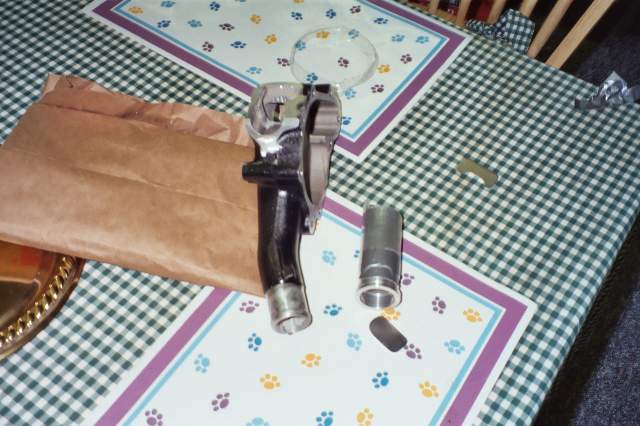

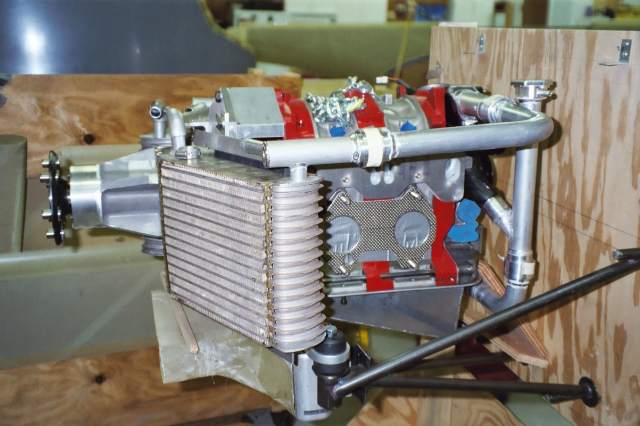

I did a similiar surgery. Two pics attached, one showing the components, the
other the finished pump. It is a casting alloy aluminum in the 3000 series,
and can be welded without difficulty. I used Aluminum pipe for the outlet
section.
Bill Schertz
KIS Cruiser # 4045
----- Original Message ----- From: "Scott" <squiggles@yahoo.com>
To: "Rotary motors in aircraft" <flyrotary@lancaironline.net>
Sent: Thursday, April 29, 2004 6:29 PM
Subject: [FlyRotary] Cutting down the water pump
Hello All...
I have taken a spare water pump housing I had and
hacked off the top neck( as you can see in the
attached photo )...
Does anyone know what type of aluminum the housing is
made out of?
I hope to have a plate welded over the top of both
openings. Sealing the thermostat recirc shaft and
having a neck welded on the other opening. The hope
is to save 2" or so by doing this route. I am hoping
someone else has gone this route and can give a few
pointers, like will this work? What aluminum alloy
did you use for the plate? For the pipe neck?
Any help is appreciated...
Thanx...
-Scott
