While tearing the 'new' engine apart, I got to thinking about making the crank angle sensor into an electric power generator again. Using the rx8 CAS, would free up the spinning post from that duty.

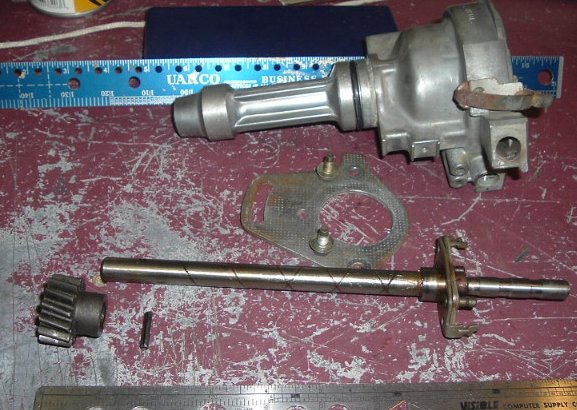

So, I tore apart the distributor that came with my first engine, just to have a looksee of how it was put together. Nothing more than a shaft in a carrier with a gear pinned to the . It would be an extremely simple matter to attach a shaft to a PM motor and pin the gear to the end of it. I'd put the distributor housing in a lathe and turn off the top part, so that the motor would bolt on where that plate does.
I went further and started searching for a good candidate for the motor. There is a bunch of electric scooter motors on Ebay selling for less that $10 each. For example:
http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&category=75210&item=7157958719&rd=1
These are 24V and rated for 2500 RPM. The voltage is wrong and the speed rating is a little low. There are some rated at 2750RPM, but I'd like to see 3000. 16A is plenty for a backup generator.
Bill, what do you think? Could you suggest a better candidate motor.
--
