This
is the 3rd in a series of posts about the Vision Microsystems (VMS) VM1000 and
EPI-800 engine management systems. As a reminder, I’m not a FAA certified
avionics technician, just an avid experimental aircraft enthusiast and EAA
member passing along what I’ve learned to the community that’s
given so much to me. This post will dive more into the inner workings of the
data processing units (DPU) and provide some hints to help keep it safe and
happy. I primarily discuss DPUs with screw type
terminals but most aspects are applicable to the serial connector types as
well.
The
DPU is the system brain; it’s a very robust and an elegantly simple
computer consisting of two major components, the analog and digital PC boards.

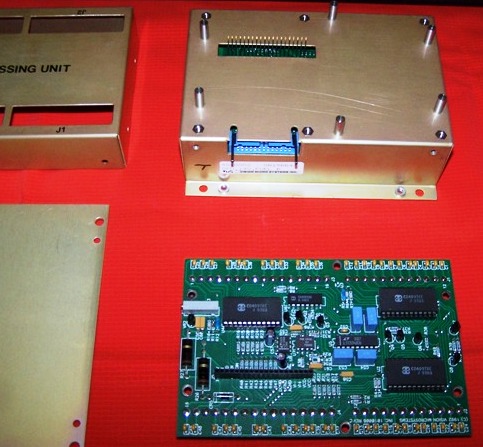

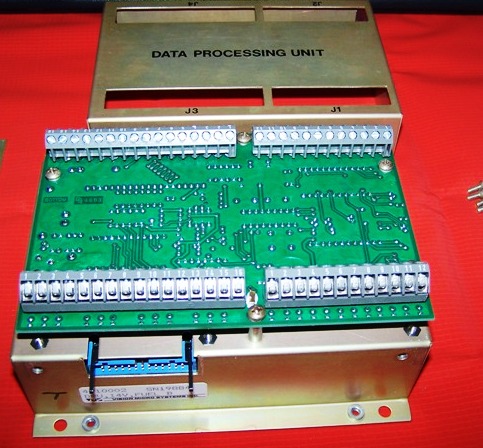

First is the analog board on which the terminal blocks are mounted (see pics 1 & 2). The analog board accepts inputs from all
sensors and transducers, converts the signals as needed for subsequent
processing, and routes them to the digital board via a central set of
connecting pins in the middle of the DPU case. The early generation DPUs had these connector pins hard soldered between the two
boards making them very difficult to dismantle for repair/upgrade. This was
quickly remedied as VMS went to a header pin and connector setup which allowed
the two main PC boards to be easily separated for service. The analog board has
3 signal busses each with its own processing chip: one for the EGT signals
(terminal J1), one for the CHT signals (J2), and one that handles all the other
engine data signals from terminals J3/J4. When it comes to physical abuse, the
poor analog board takes the brunt of any punishment you or the aircraft dish out
to it … more on this later.
The
second main component of the DPU is the digital board; this is where the real

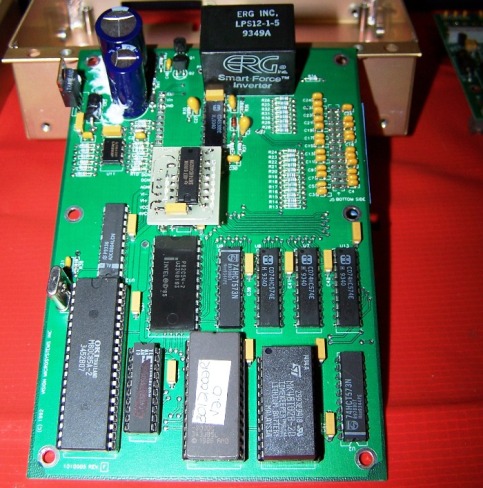

work of the system gets accomplished (see pic 3) The
digital board accepts data from the analog board, analyzes it, and generates
the appropriate signals to drive the cockpit indicators/warning annunciations.
These signals output through the 26 pin rectangle connector to the ribbon cable
assembly and the indicators. The digital board additionally houses the
backlight subsystem which was covered in some detail in a previous article.
Also mounted on the digital board is an integrated circuit (IC) chip
affectionately known as the “battery chip,” in reality is a
multifunction IC consisting of the DPU’s
memory, clock/timekeeper, and an imbedded “keep alive” lithium battery. Early generation battery ICs had limited service
life due to an undersized lithium cell, sometimes lasting only 3 years before
needing replacement; VMS addressed this with an improved version. These early

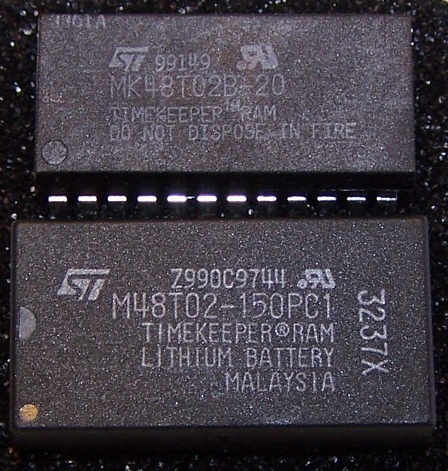

MK48T02B-20 chips are noticeably smaller than the subsequent replacement,
M48T02-200PC1 (see pic 4). The -200 chips were an
improvement over previous versions and had better service life on the order of
6-8 years, production ended on these some time ago. The current production
chips are the p/n M48T02-70PC1 and -150PC1 and feature lithium cells with a 10
year minimum life specification; owners have been getting good “real
world” service life out of these chips. Also improved are the memory
access speeds at 70 and 150ns respectively, both are compatible with the VMS
DPU processor.
So
when does the battery need to be replaced?
If you have a -70 or -150 battery IC, I recommend replacement at 10
years time in service even if it’s working fine … you don’t
want it to fail on you at the most inopportune moment. If you have a -200
… just replace it now. Your DPU also begins to give you hints that the
battery is getting weak and reaching the end of it’s
service life. On VM1000s, the initial indications are usually problems with
“lean find mode” being intermittent or not working at all and/or
the fuel computer not accepting additional fuel and “forgetting”
the fuel tank size. On EPI-800s, the fuel computer symptoms are the same as
above plus the DPU will lose your local time setting and your peak EGT function
may not work. The final death throw with both systems is when the tach time is no longer retained,
this indicates the battery is completely failed.
One
other note here regarding batteries … I had a case of an owner who could
not get his fuel computer to work on a VM1000, it would not accept a fuel tank
size nor additional fuel. The owner had just paid $200
to have the battery chip replaced by his local avionics shop and he had
successfully reset the tach time so he was sure the
problem was in the DPU somewhere … the avionics shop did not have any
expertise in VMS units so they contacted me. When I received the DPU and opened
it up, it had a -200 battery chip in it … I guessed the chip was at least
10 years old, a phone call confirmed it was stock that had been on the avionics
shop shelf for a long, long time. I replaced the chip with a new production
-70, ran a bench test and everything worked perfectly again.
As
I mentioned earlier, the analog board is the first to take any damage on the DPU.
In repairing DPUs, I’ve found bent and/or
broken terminal blocks. This seems to happen either from dropping the DPUs during installation/removal or from trying to shoehorn
the DPU into a too tight or otherwise inappropriate installation. I recommend
avoiding installations in inaccessible locations if at all possible. Also,
remember that our aircraft have moving parts and carry people … having a
control rod impact your DPU and/or short out terminal connections or having a
passenger kicking the DPU because it’s mounted near their feet is not a
good thing. The engine compartment and battery bay are NOT appropriate
locations for the DPU … I received a unit recently that had extensive
corrosion internally, DPU screw heads were rusted completely, all copper parts
were corroded green and black, the analog board was delaminating, even plastic
parts were discolored and blackened but amazingly enough it still worked! When I queried the owner, he said it was
mounted near the battery … battery acid and the vapors that come off the
battery during charging are bad for your DPU! Also, over tightening the screw
terminals result in stripping the small threads or actually breaking the screw
off … nice and snug is all you need.
The
analog board is susceptible to static discharge damage. In two recent repair
cases, I’ve had to replace the analog signal buss processing chips
… I suspect the damage was caused by static discharge. When I discussed
the DPU installation with the owner, it became apparent that the DPU case was
not properly grounded in the aircraft as directed by the VMS installation
manual. Case grounding is critically important in composite aircraft such as Glasairs and Lancairs; metal
aircraft such as RVs should get good case ground by virtue of the fact that they
are mounted to the aircraft structure. After having the owner reinstall the DPU with a case ground lead, there have been
no subsequent problems. Bottom line here is proper grounding protects your DPU
and sensitive electrical equipment in general.
So
how do you keep your DPU safe and happy?
Grounding, grounding, grounding!
Proper grounding is the first ingredient in good service … follow
the installation manual and make sure you have good case and system ground.
Installation: make the DPU
accessible and check it as part of your annual condition inspection, avoid
areas where dirt/grime or corrosive gasses/fluids can invade the DPU. Screw
terminals can loosen in service and lead wires can wear so during your annual
give each terminal wire a gentle tug and check the torque with a properly sized
jeweler’s screwdriver. Always discharge yourself and ground the aircraft
before servicing any VMS components or any other electrical components.
If
I can help you with DPU battery change, troubleshooting, or any other VMS
issue, please feel free to contact me direct at mooney37v@juno.com
Happy
Flying,
Reggie
