A module to fix the gear operation failure problem in the LNC2 using the standard hydraulic system is now available.

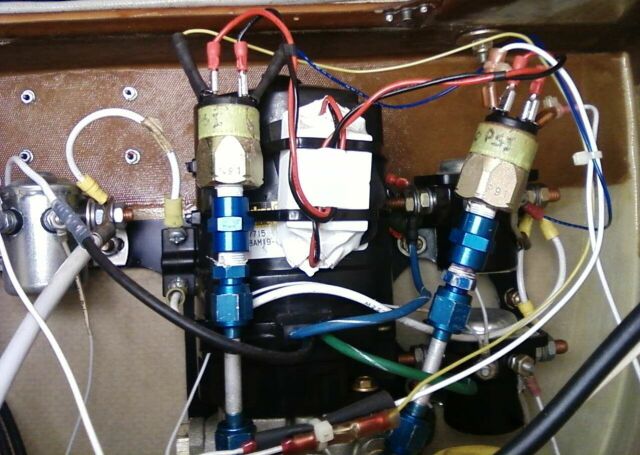

The problem occurs when thermal expansion has caused both HI and LO pressure switches to trip rendering the landing gear hydraulic pump incapable of operating.
This module will activate the hydraulic pump motor in the direction selected by the gear switch when both pressure switches have been tripped by high pressure thereby relieving the pressure in the offending side.

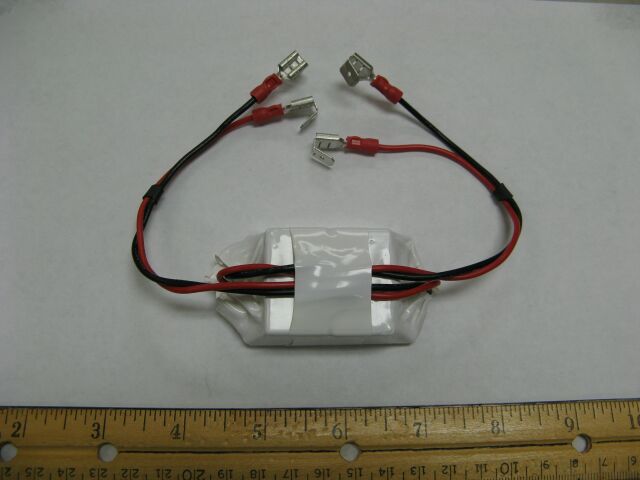

The module is 2.5" x 1.5" x .75", weighs 2.3 oz. and has two pairs of leads that connect directly to each pressure switch with 1/4" spade terminals. No other wiring is necessary. Price is $250.00 each. Simple installation instructions included.
Contact Wolfgang at 248-471-2000 or Wolfgang@MiCom.net
--
Lorn H. 'Feathers' Olsen, MAA, ASMEL, ASES, Comm, Inst
DynaComm, Corp., 248-345-0500, mailto:lorn@dynacomm.us
LNC2, FB90/92, O-320-D1F, 1,650 hrs, N31161, Y47, SE Michigan
|
|
