Randy,

Unfortunately I don't have a photo of that side.

In words:  I replaced the AN3 bolt at the bottom of the control stick with a longer one.  I had to place a few washer in between the existing rod end bearing and the one going to the auto pilot servo.  The rod end bearings that came with the auto pilot are made for covering larger angles of rotation.  The washers keep the two control rods from hitting each other.  Too many washers and you'll run into the seat on the passenger side during full down deflection.

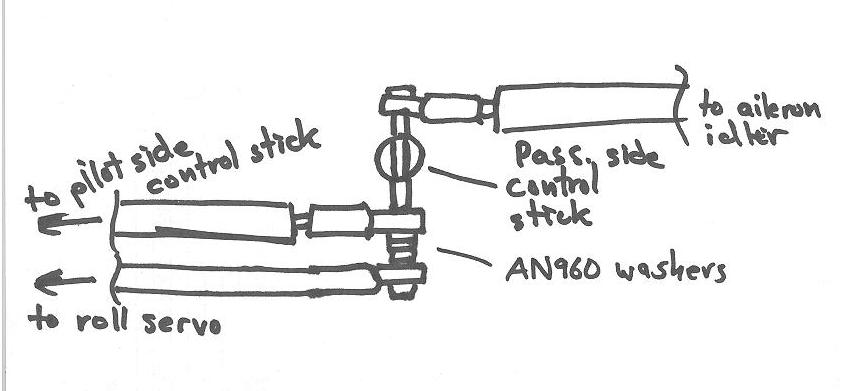

hope the quick sketch helps.

Chris



Chris zavatson

N91CZ

360std
