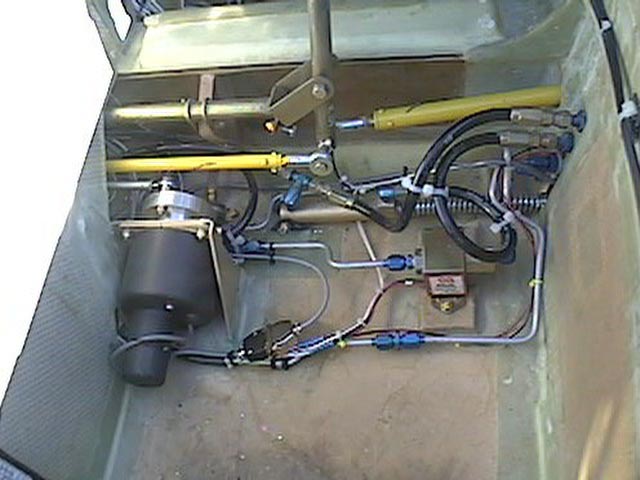

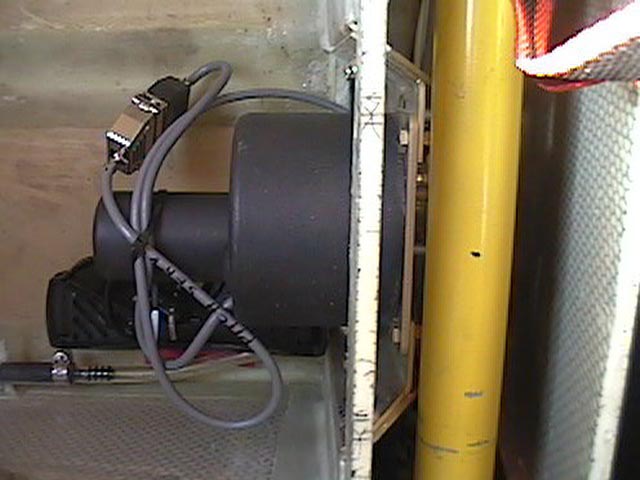

Here are some pictures of servo installs.

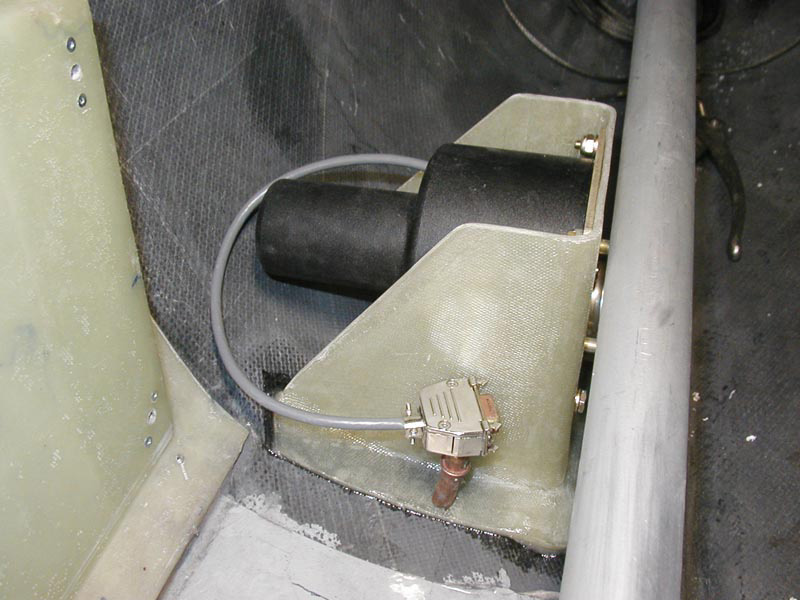

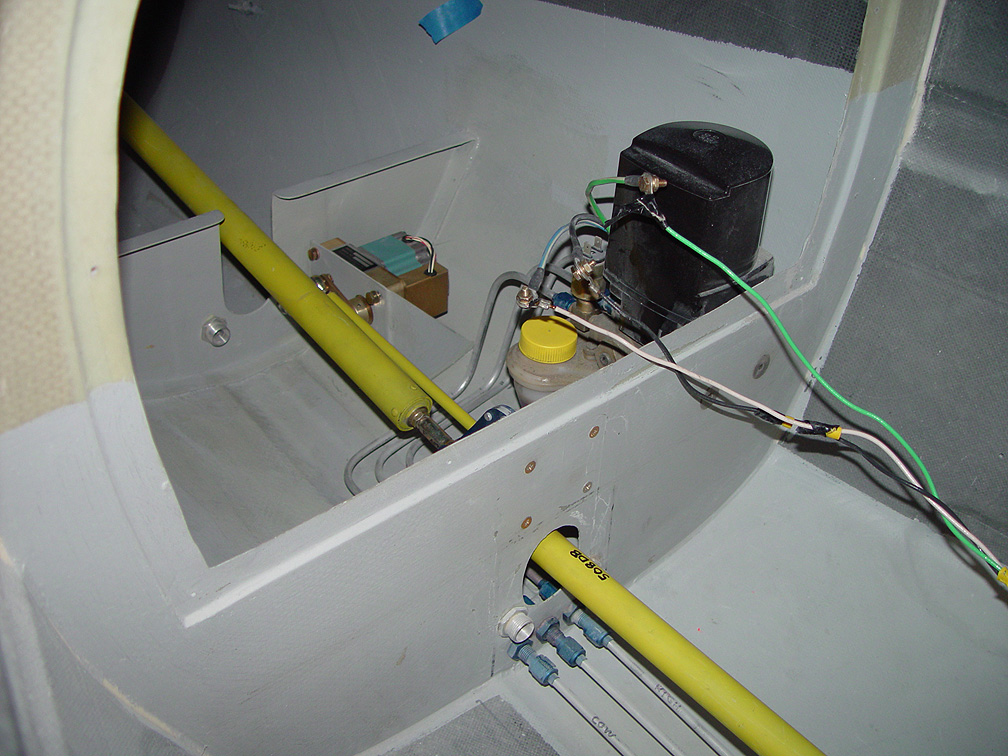

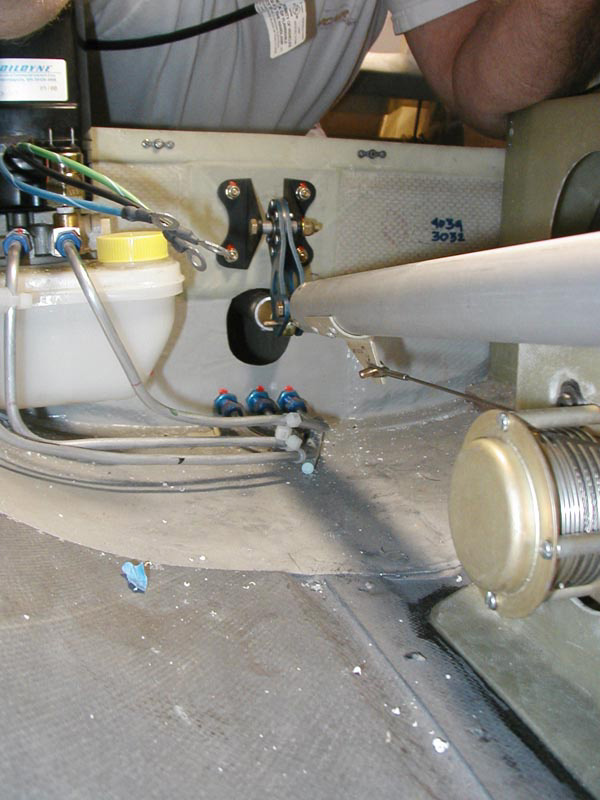

Some are from Tru-Track, I wrote to S-Tec and a couple are from them. The
installs are in 320/360 series and Legacy, the concept is the same. Hope this
helps.
Bob Mitchell
Lancair 320
N56SH
From: Lancair Mailing
List [mailto:lml@lancaironline.net] On Behalf
Of randy snarr
Sent: Sunday, September 28, 2008
12:16 PM
To: lml@lancaironline.net
Subject: [LML] auto pilot roll
servo installation 235/320/360
|
Does anyone have a few
pictures they can share on how they connected the aileron servo to the
ailerons?
I have the servo mounted under the passengers seat and made a push rod with a
rod end on each end to connect to the pilots side but there is not enough
relief in the rod ends to allow the stick full deflection forward and back.
Looks to me like there needs to me a ball joint connection or something like
that.
Any help greatly appreciated...
Randy Snarr
235/320
N694RS
|
