Re: TSIO550E Engine Set Up (WOT: RPM MAP
FF)

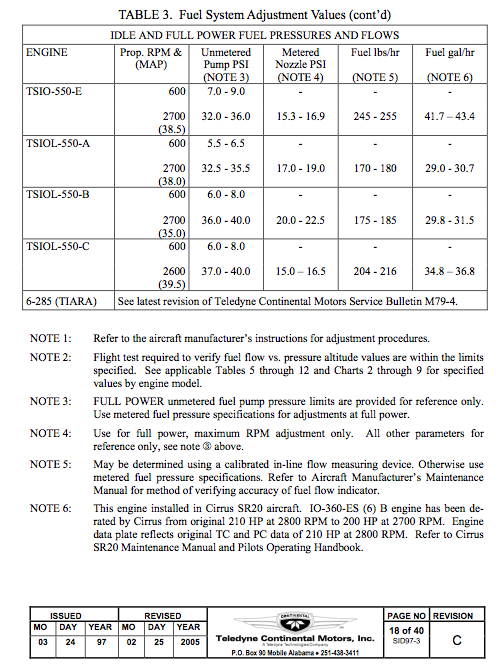

From page 18 of TCM manual on engine set up (SID97-3):
IndicatesTSIO550E should have full power 2700RPM, 38.5"
MAP, 41.7 to 43.4 GPH fuel flow.
http://www.lancair.com/Main/pdf_documents/SID97_3B.pdf
I trust Jeff Edwards guidance from his experience and inquiry
into the subject. I need to adjust my high end fuel flow based
on his guidance.
Jeff
said, Trial and error but I found
it to be around 48-49 gph
Jeff, did
you mean 48-49 is about the place where the engine begins to complain
or is the place where if you add high boost then it complains.
? Do you know how much high boost adds to fuel flow
when wide open? e.g. I have mine setup for 45gph
without boost.
Colyn
|
