JOHN MCMAHON <mcmahon_j@prodigy.net> wrote:
Re-reading the archives and saw the idea of mainfolds for the pitot/static
lines. Did anybody find a commercial source or plans for such manifolds. They seem like a really great idea and I'd like to incorporate them in our ES.<<<

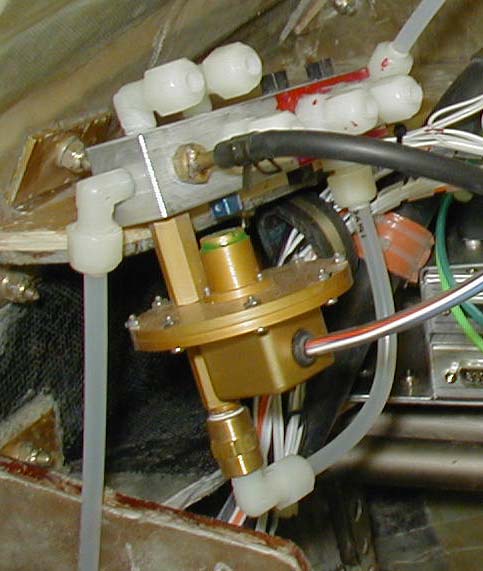

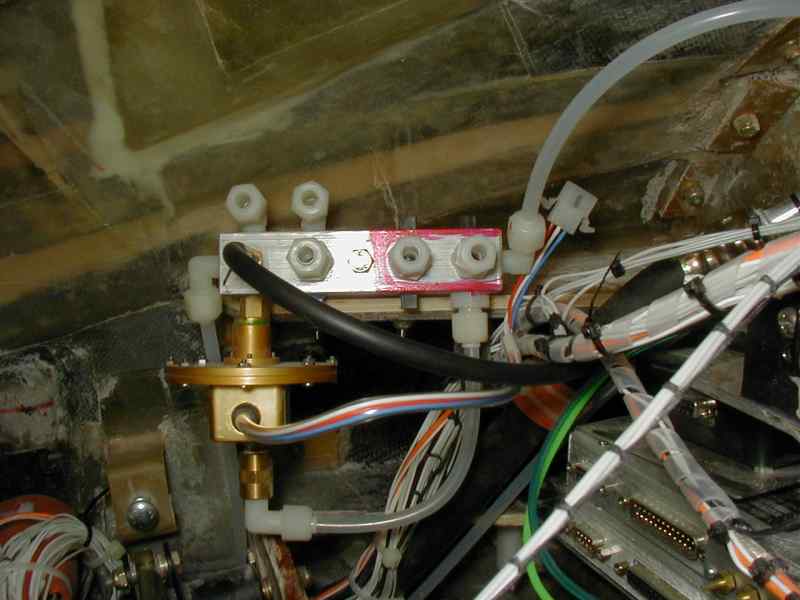

I built a pitot/static manifold for Ted Noel's IVP. It's actually pretty simple, nothing more than a 1" square AL bar, about 6" long, has 7 ports on each end with a screw mount through the center. I'm attaching a couple of pictures so you can see what it looks like. I colored one end red to indicate the pitot side, the other (static side) was left plain. All ports are 1/8 NPTF, center bolt hole is a -3.
Here is how the ports are setup....
v v v v
o o x o o <
^ ^ ^ ^
The x in the middle is the -3 mounting screw hole. I hope this helps.
<marv>
PS... ACS has similar manifolds listed in their catalog. prices vary with number of ports.
|
|
