Mailing List flyrotary@lancaironline.net Message #7701
From: <msteitle@mail.utexas.edu>
Subject: Re: [FlyRotary] How to attach LS1 Coils
Date: Fri, 30 Apr 2004 06:55:14 -0500
To: Rotary motors in aircraft <flyrotary@lancaironline.net>
Scott,

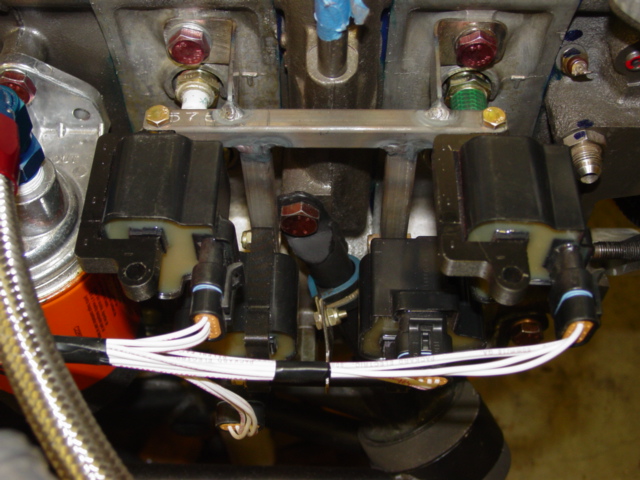

On my 3-rotor I took the coil-on-plug approach by fabricating mounting brackets
from 1/2" square 4130 tubing.  Not the easiest solution, but compact.  Boots
were from a Ford Lightning truck, and were cut down slightly.  The drawback is
that the assy. must be removed to change plugs.

Mark S.  Quoting Scott <squiggles@yahoo.com>:

Good Morning...

I have my LS1 coils in hand, now I want to mount
them...Sounds simple enough but, sitting down last
night to work on a mounting tray I noticed there
really are not any obivous( at least to me ) mounting
flanges or otherwise.

How have others attached their coils to the mounts,
trays, etc?

Thanx...

-Scott
http://home.att.net/~the_stouts_zenith_801/
