Really looks nice and clean, Mike. Good
job!
If you can run 10 minutes at 5300 rpm on the ground and
not get above 180F then its unlikely you'll have any cooling problems in the
air. Although, I have found out what works on the ground and what works in
the air aren't always the same. For instance, depending on how the exit
from your radiator is orientated, higher pressure on the underside of the cowl
during a climb could impede air flow. But, for now I would say, looks like
you are going to be another one to get into the air without the "traditional"
temperature issues.
One thing I do have a question about. It "appears"
that your exhaust stack runs fairly close to your radiator enclosure (which I
presume is fiberglass). I think I would put a thin sheet of SS between the
exhaust and your radiator plenum.
Ed
----- Original Message -----
Sent: Sunday, March 02, 2008 11:52
PM
Subject: [FlyRotary] engine installation
pictures

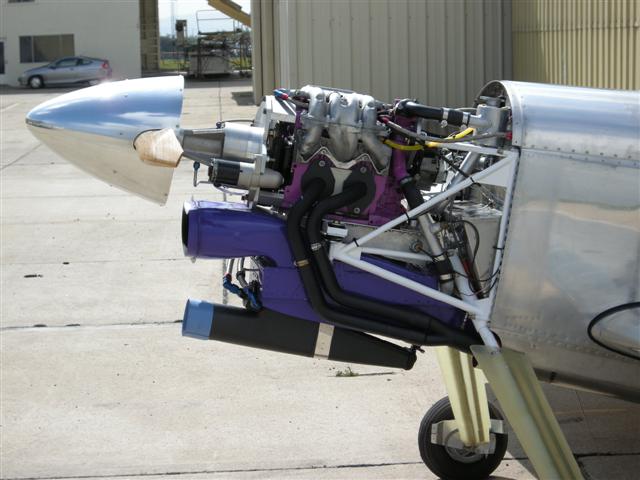

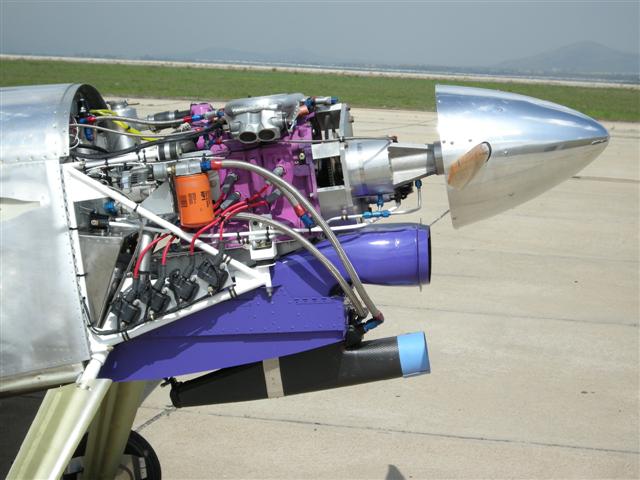

Here are a couple of pictures of my engine
install. Had a couple of engine runs today including one run at full power
(5300 RPM static) for about 10 minutes. Temps came up to 180 and stopped
climbing. Things are starting to come together now. Starting to have some
confidence in this thing.
Mike Wills
RV-4 N144MW
|
