Greg,

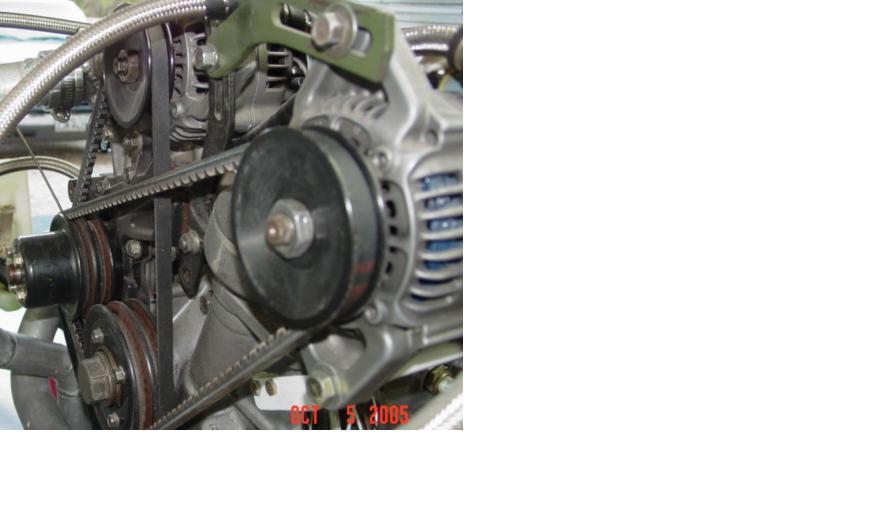

Here's a picture of how I did my 20B dual alternator arrangement. Mounting the second alternator high allowed for more belt wrap on the main pulley. Both belts help drive the water pump.
Mark S.
On 2/26/08, Greg Ward <gregw@onestopdesign.biz> wrote:
Hey Chris;
Any pictures of the twin alternator setup? Bracketing is my current
problem. I want to do this on my 20B setup also.
Thanks;
Greg
----- Original Message -----
From: "Christopher Barber" <CBarber@TexasAttorney.net>
To: "Rotary motors in aircraft" <flyrotary@lancaironline.net>
Sent: Monday, February 25, 2008 9:20 PM
Subject: [FlyRotary] Re: More Musings...ah screw it, just shoot me!
> Yes, two alternators, two regulators, two batteries per Bob Knuckles "The
> Electric Connection" Z-14 drawings. (www.aeroelectric.com). A Crossover
> switch allows for both batteries to be used at the same time for cranking.
> Independent systems otherwise powering there own systems, but if need be,
> you have a complete back-up electrical system that can be called upon.
>
> Thanks for the consideration of my current dilemmas.
>
> All the best,
>
> Chris
>
>
> ----- Original Message -----
> From: "Bob White" <bob@bob-white.com>
> To: "Rotary motors in aircraft" <flyrotary@lancaironline.net>
> Sent: Monday, February 25, 2008 10:41 PM
> Subject: [FlyRotary] Re: More Musings...ah screw it, just shoot me!
>
>
>> Hi Chris,
>>
>> Maybe I'm missing something here. You need a regulator for the
>> alternator. Do you have two alternators?
>>
>> Bob W.
>>
>>
>>
>> On Mon, 25 Feb 2008 21:28:39 -0600
>> "Christopher Barber" <CBarber@TexasAttorney.net> wrote:
>>
>>> Got off work and happily headed to the hangar. I was able to get it to
>>> start and stay pretty cool for a while as I played with the settings.
>>> Switched from Controller A to B, back to A, disabled the Primary
>>> Injectors, the Secondary Injectors(in succession <g>), switched back to
>>> B, did the disable toggle spring switch with an expected drop in
>>> RPM...switch back to center and expected RPM returns. Throttled up and
>>> the RPM steadily increased without jumping around until it got to 4999
>>> or so and went to zero and started jumping around above 5000 rpm......no
>>> big deal yet as we discussed the possible noise issue yesterday and I
>>> have not checked the problems yet. Used my laser temp gauge to see if
>>> the engine and the EM were kinda close, they were. Tried out my new
>>> Harbor Freight laser RPM gauge, but couldn't get it to work right. Ok,
>>> Several minutes has gone by so I shut down to let it cool. Tried to
>>> restart to no avail...so I decide to let the system cool for an extended
>>> period.
>>>
>>> While waiting I decide to install my new B&C $230.00ish Regulator.
>>> Already have one of these gems on the primary battery system and feel it
>>> is time to install the new one that arrived a couple of weeks ago on the
>>> Aux side of things, so I shut down all the systems, disconnect the
>>> batteries, crimp some new connectors on some of the wires to fit the new
>>> regulator get everything hooked back up and feel pretty good about the
>>> night. Heh heh heh, silly me.
>>>
>>> A while has gone by and everything seems to have cooled off. I hold my
>>> tongue just right and crank the engine and with some grace of the engine
>>> Gawds the thing cranks up. Wait...what is this...the EM is showing the
>>> RPM, but, but oh, damn it is flashing NOP. It was not doing that
>>> before. Damn. Hmmmm, the Coolant temp and Oil temp are showing exactly
>>> the same temp at 44 degrees....lets see if they start to
>>> raise....Agggghhh, no, they are both stuck on 44 degrees F. Geeeez. I
>>> know, lets try the "B" controller and see what happens......NOOOOOOOOO,
>>> I switch to the "B" controller and the engine starts to die. Damn, damn,
>>> damn. What the hell just happened????? Thoughts????????
>>>
>>> Yes, I am disappointed in the evening that started on a positive note.
>>> This (Monday) is my Friday night and I have the next two days to make
>>> progress. If'n y'all have any easy answers for me I would love to hear
>>> 'em as I would like to think the next two days would be steps forward as
>>> opposed to just trying to get back to where I was. I did not even start
>>> to troubleshoot yet as I was too frustrated and needed to walk away for
>>> a while to sulk <g>. Did I fry the "B": controller with a new/better
>>> regulator. Everything was disconnected during the install and nothing
>>> else changed....OTHER than the instrument panel shifted from its
>>> temporary mount just before the second start.
>>>
>>> Hopin' for some insight and perspective before I go kick my dog when I
>>> go to the hangar tomorrow (ok, I would never kick Winston he is really a
>>> good dog, but y'all get the idea). As always, THANKS for your support.
>>>
>>> All the best,
>>>
>>> Chris Barber
>>> Houston
>>
>>
>> --
