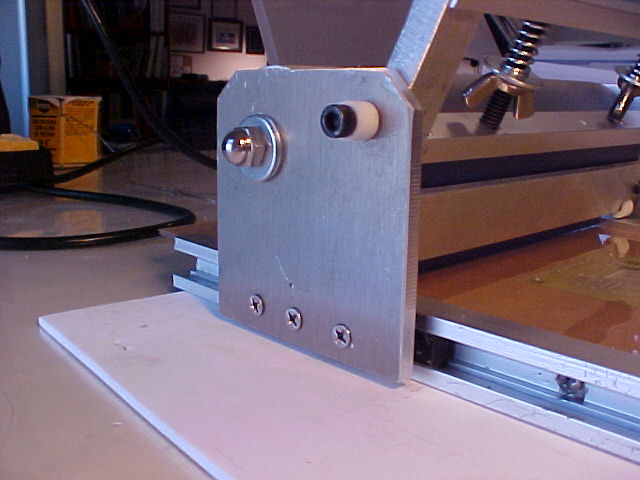

This shows one of the two side mounts of my SMD solder
paste printer which is attached to the MSD nylon strip which rides in a groove
inside the cheap T track. The T track is simply screwed to the 1/2" slab
of aluminum. The acorn nut provides tension through a 1/4" threaded rod and
keeps the pull-handle gripped between the two sides and provides tension on the
side plate which puts side pressure on the MSD strip in the T rail. More
pressure makes the device slide slower and less makes it faster.
The squeegee holder can pivot to either put the squeegee
down on the bed or to hold it up off of it after a solder run and you want to
move the squeegee holder back to the other original end of the board without
smearing your deposited paste.

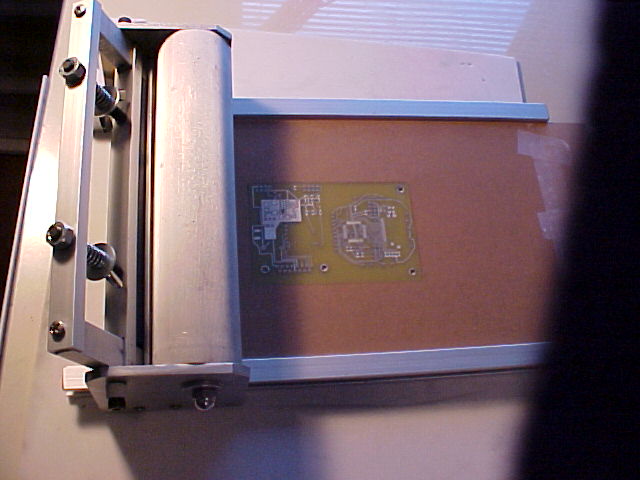

The second photo shows where the
squeegee holder would be positioned after a "solder-run" was made. I would
then rotate the squeegee up 1/8" inch out of contact with the bed and move it
back to the other (starting) end of the bed.
Ed
