Tracy, does the 323 088D sensor work with 1/8 pipe
threads? The eGuages site says it is M10x1?
Regardless, if you are installing a sensor in an anodized
aluminum fitting like Scott showed, I think you need a separate ground for the
sensor, as the fitting will not be electrically connected to the engine block.

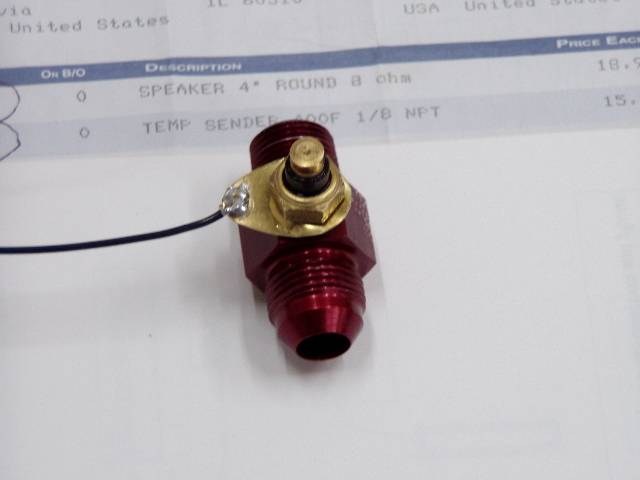

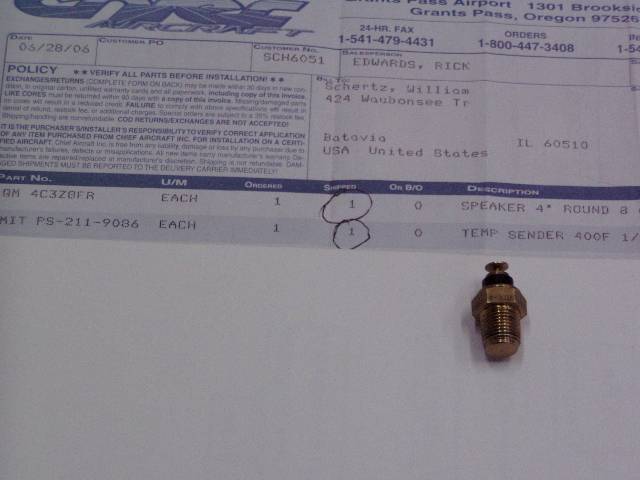

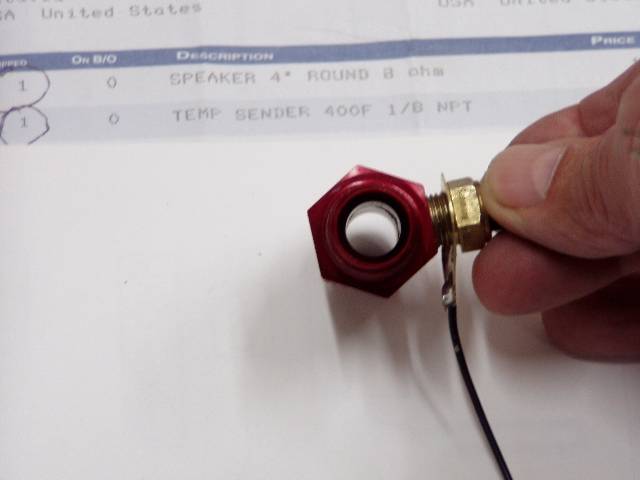

Attached are some photos of how I did it, using brass shim stock. This is a
Mitchell 400F sensor PS-211-9086 (not for use on Tracy's EM-2). It comes about
flush with the inside of the fitting.
Bill Schertz
KIS Cruiser # 4045
----- Original Message -----
Sent: Thursday, October 12, 2006 9:13
PM
Subject: [FlyRotary] Re: Short Temp
Senders
Try the VDO VW Rabbit sensor (eGauges PN 323 088D). Same thread but
has almost zero protrusion. It has the correct resistance curve for the
existing EM2 calibration.
Tracy
----- Original Message -----
Sent: Thursday, October 12, 2006 5:37
PM
Subject: [FlyRotary] Short Temp
Senders
Hello All...
I ordered the following fitting with a
1/8" port for
senders.
http://store.summitracing.com/partdetail.asp?part=RUS%2D670340&FROM=MG
I
have the EC2 which came with the VDO 323 057 1/8-27
300F sender.
The sensing portion of the sender is
1/2" long. Which on the -8
hose pretty much closes
off the entire hose.
The threads on the
fitting are approximately 1/4"
deep.
Thus, does anyone know of a
shorter temp sender which
will not close off the hose? The ideal
length would
place the sensing portion of the probe only 1/8" or
so
into the hose.
Any advice is
appreciated.
Thanx...
-Scott
