From: David Staten <Dastaten@earthlink.net>
Subject: Intake Pictures 2
Date: Sun, 19 Jun 2005 09:10:42 -0500
To: Rotary motors in aircraft <flyrotary@lancaironline.net>
 Message Header

Undecoded Message

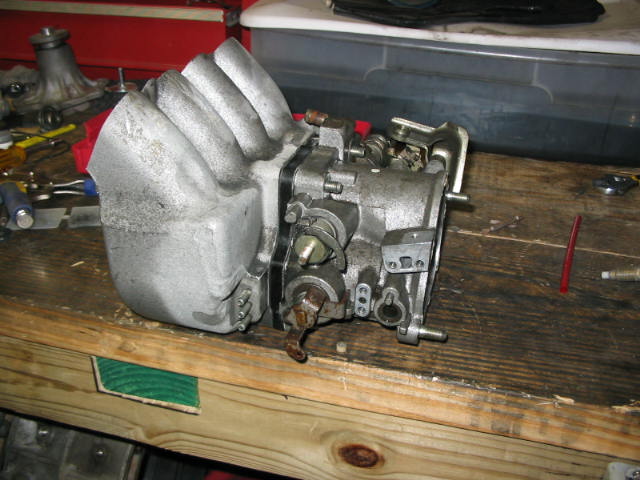

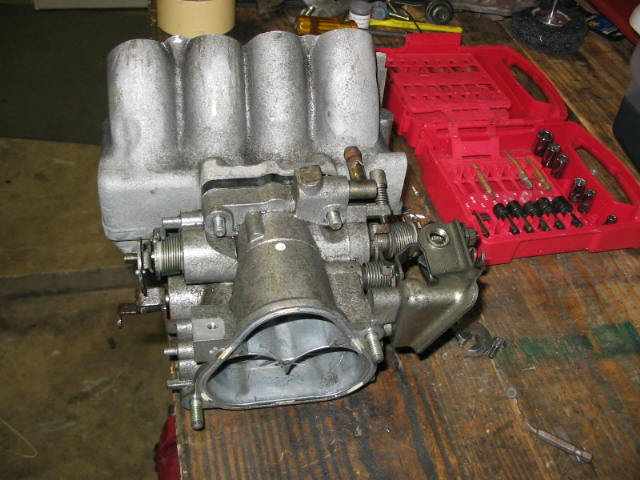

The next picture series (Intake Pictures 2) shows the stock throttle body and its mating with the UIM. The these two pics show the removed parts beside the TB. The next two show the stock cutoff manifold attached to the TB with its black "spacer" ring in place.
