Ok, the pictures are as follows:

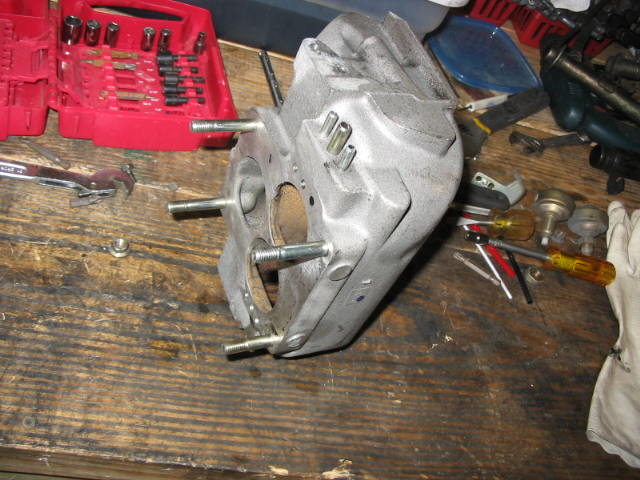

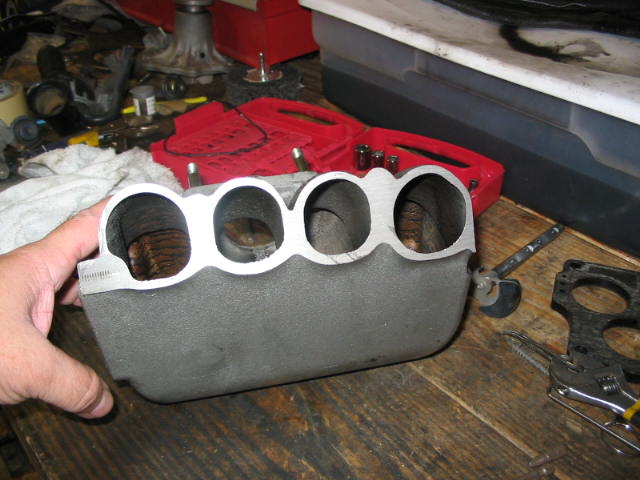

The first series (Intake Pictures 1) are the upper intake manifold as cut. UIM1-4 show differing viewing angles of the upper intake manifold
The next picture series (Intake Pictures 2) shows the stock throttle body and its mating with the UIM. The first pic shows the removed parts beside the TB. The next two show the stock cutoff manifold attached to the TB with its black "spacer" ring in place.
|
|
