Based on some conversation on PL's list, I came to realize that Tracy's AD makes the assumption that we are all as familiar with the inside of his EC2 as he is, from a visual standpoint.
As a result of a poster there, I went down to the hangar, popped the cover off our EC2 (which was still sealed in plastic) and snapped a picture or two. At first, I was concerned that there was going to be a forest of capacitors and other gadgets inside the case that would make it difficult to locate, but truth is, its almost like a lone resistor sticking out of the middle of the breadboard, with other big doo-dads lining the periphery.

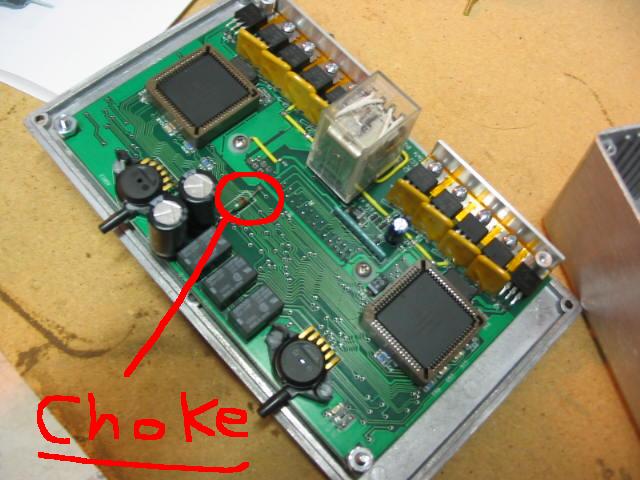

Anyways, here is a pic of the potentially offending choke. In our case (because we took delivery this spring) it is one of the substandard ones..
Dave Staten
|
|
