Georges,

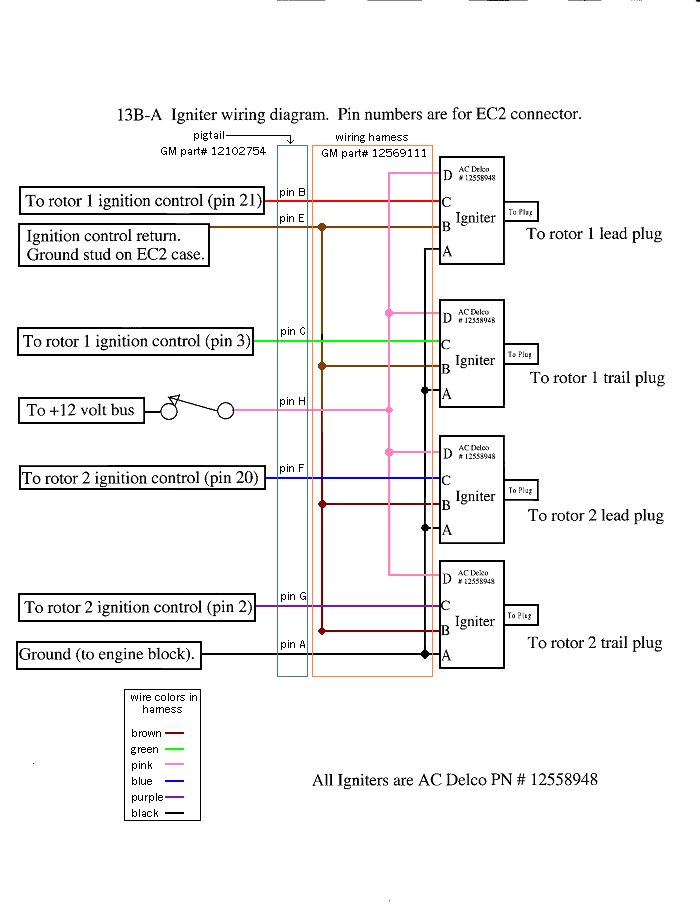

Here's a schematic for that harness that's been around awhile. I believe it originated from Ed Anderson (some correct me if I'm wrong). This may be an obsolete version, as I thought that it had been decided that splitting the +12v B+ line into separate lines (and switches) for leading and trailing coils was a prudent thing - albeit it would require a bit of splicing in the factory harness.
Dale R.
Date: 06/04/05 16:28:07
To: Rotary motors in aircraft
Subject: [FlyRotary] Re: LS-1 Coils and harness information
Hi Georges,
There is a 7 pin plug with a power pin that feeds all four coils.
Bob W.
On Sat, 4 Jun 2005 14:32:56 -0700 (Pacific Standard Time)
"Echo Lake Fishing Resort (Georges Boucher)" <echolakeresort@telus.net> wrote:
Does the factory harness use a common wire to power each coil or are they individual wires?
> Georges B.
|
|
