Greetings,

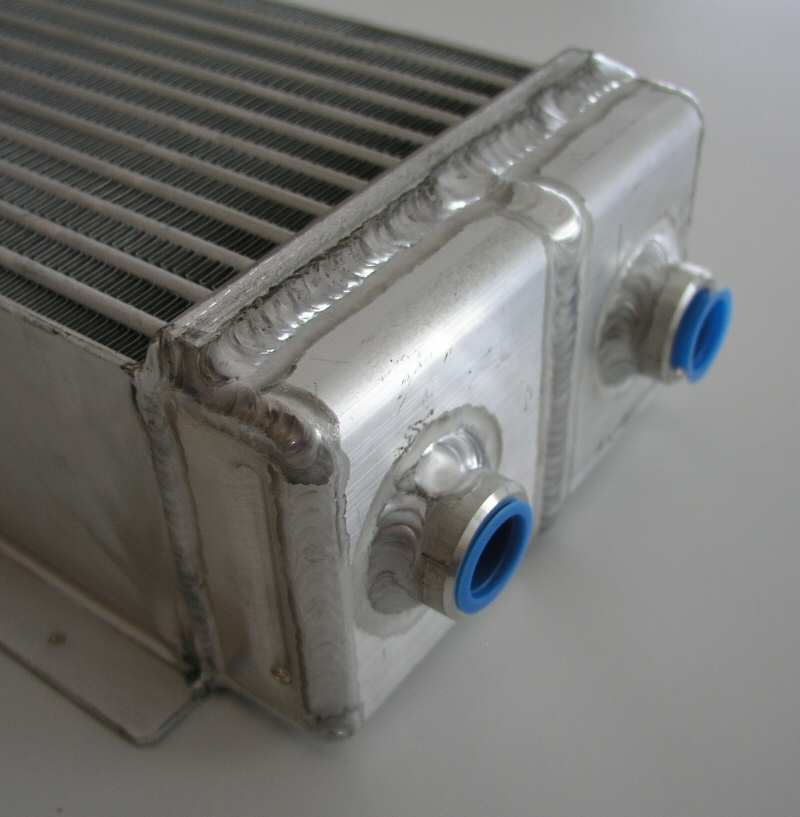

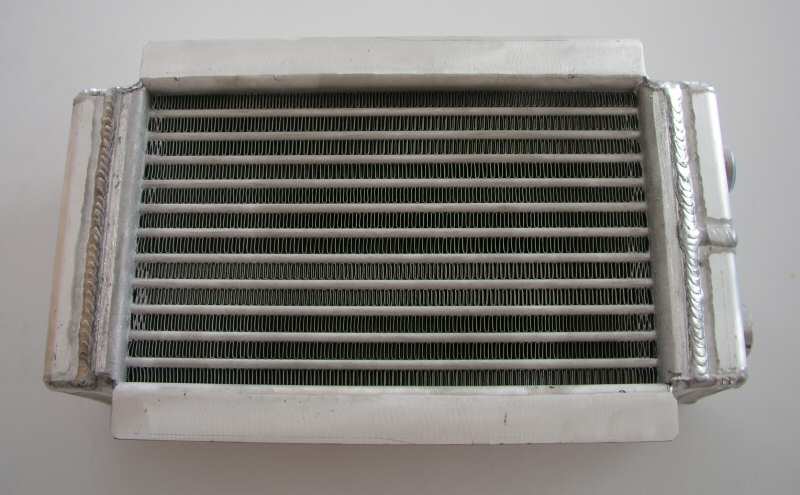

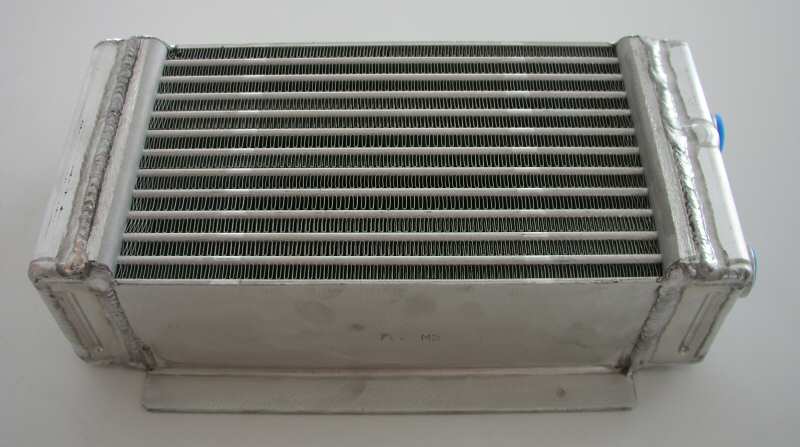

I got the new
oil cooler, and I have my doubts about the size. It will be
easy to fit, but will it cool? The thing is certainly built like a tank,
and it didn't even have any packing in the box. I guess Fluidyne doesn't

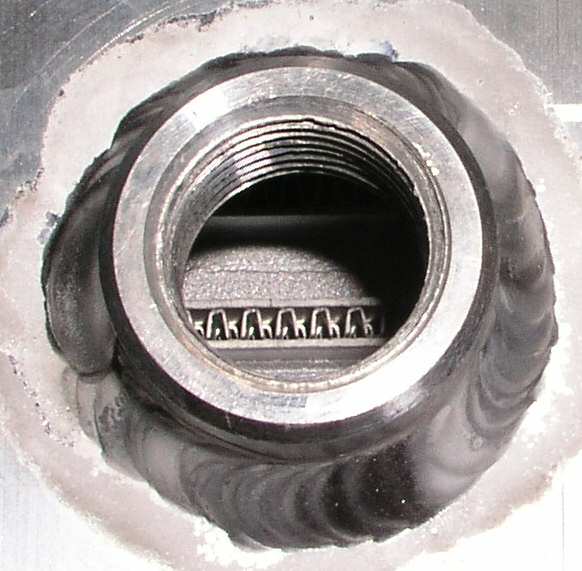

figure it needs any special treatment. The tubes do have nice
turbulator fins inside, so I have no doubt that it will be far more efficient
than the evap core was. Will it be twice as efficient??? I guess
I'll find out. Specs follow.
Fluidyne
DB-30517
overall
dimensions
12.625”
wide x 5.875” tall x
3.875” thick
Core
dimensions
9.375” wide x
5.875” tall x 3”
thick (165 cu in
volume)
Weight- 7
lbs.
Factory tested pressure- 175 psi
For
reference:
Evap- core
dimensions
10.5” wide x
8.875” tall x 3.625” thick (338 cu in volume)
Stock
2nd Gen- core dimensions (found
in archives)
19.5” wide x
4.5” tall x 2” thick (176 cu in volume)
Rusty
