> Does anyone know where the center line of the E-shaft on the Renesis is in
> relation to the oil pan bolts?
>
> The oil pan bolts are on 11 7/8 inch centers(measuring across the width of
> the engine). Is the center of the E-shaft centered on these bolts? Also
> what is the height of the center of the E-shaft above the oil pan/engine
> juncture?
>
> I am working to build my own engine mount and need these measurements to
set
> up the thrust line and offsets.
>
> I am using the plate from Conversion Concepts, but Fred's illness
prevented
> him from building the remainder of the mount in a timely manner.
>
> So, I am now on my own. Any suggestions greatly appreciated.
>
> Thanks,
> Bill Bradburry
Bill,
I checked -160mm from bottom of motor to centre of e-shaft.
Pan holes150mm each side of e-shaft centre (approx). Your 11 7/8" x 25.4 =
301.6 - I got 301.5. However it is centre or close enough for your
application.

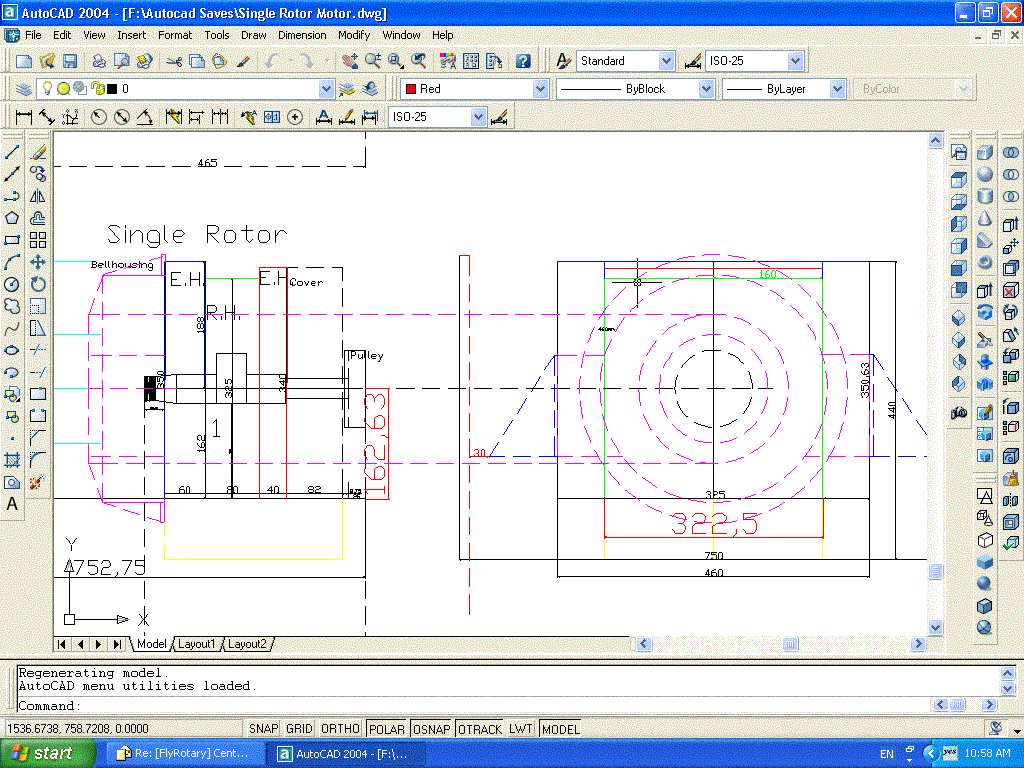

I have a rough drawings I did for my single rotor, sizing it for engine bay
fit, but it's a couple off mm out, that's why I checked.
Drawing attached!
George (down under)
|
|
